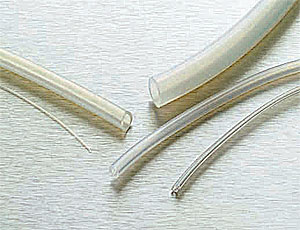

Premium Grade Silicone Tubing

Platinum-Cured Single Lumen USP Class VI FDA Masterfile

Features & Benefits:
• Platinum cured for a high degree of purity
• Extended post cure for lowest level extractables
• Biocompatible, inert, non-reactive with other elements per
systemic testing
• Odorless, tasteless, non-toxic for use in medical, food, drug,
personal care, and deionized water applications
• Non-leaching plasticizers
• Sterilizable by radiation, ETO, steam – 30 psi at 253°F (123°C) for
use in sterile applications, reusability
• Resists temperature extremes – flexibility retention:
-65°F to 400°F (-54°C to 204°C); brittlepoint: -100°F (-73°C)
• Translucent for visual monitoring
• Colour stripe, tint for custom process control identification

Biocompatibility Tests:
• Tests conducted per the standards set by the United States
Pharmacopoeia National Formulary, Class VI Biological Test for
Plastics, and also conducted according to Ph Eur VI.1.3.2.
• SF Medical Platinum Cured Material meets or exceeds the
requirements of these protocols. Copies of the studies and raw
data are on file at Trelleborg Sealing Solutions Hudson (formerly
SF Medical).

Elastomer Physical Properties
	ASTM Method	Typical Values
Hardness	D-22406	60
Durometer A
Tensile strength psi	D-412	1275
Elongation %	D-412675	625
Tear resistance	D-624	1.15
Die B ppi
Compression set %(22 hours at 350°F)	D-395	40
